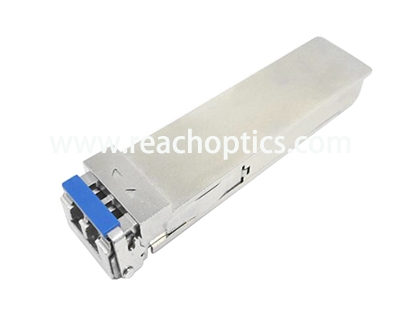

Reachoptics' 100G CFP4 LR4 optical transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA
Feature
Compliant to 100Gigabit Ethernet (100GbE) 100GBASE-LR4 & ITU-T G.959.1 4I1-9D1F
Laser Class 1
CFP2 MSA compliant
103.125 & 111.810 Gbit/s Dual Rate Operation
100GBASE-LR4 /4I1-9D1F: 10 km Reach
25.8/28.0 Gbit/s x 4 channel Electrical Interface (CEI-28G-VSR)
1310 nm cooled EA-DFB LD
PIN Photo detector
Operation Case Temperature: 0 to 70°C
Low Power Consumption (12W max)
MDIO Management Interface
Application
Dense wavelength division multiplexing (DWDM) systems
Metropolitan area network (MAN) systems
Internet Protocol (IP) switches and routers
Server and Storage Area Network (SAN) applications
