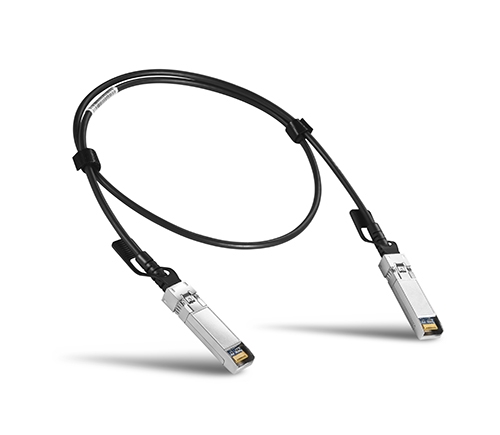

Reachoptics' SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 10m).
Features
- Compliant with SFF-8431, 8432 and 8472.
- Up to 10.3125Gbps data rate per channel
- Up to 7m transmission
- Operating temperature: 0~70℃
- Single 3.3V power supply
- RoHS compliant
Benefits
- Cost-effective copper solution
- Lowest total system power solution
- Lowest total system EMI solution
- Optimized design for Signal Integrity
Applications
| Length(m) |
Cable AWG |
| 1 |
30/28/24 |
| 2 |
30/28/24 |
| 3 |
30/28/24 |
| 4 |
24/26 |
| 5 |
24/26 |
| 6 |
24 |
| 7 |
24 |
| 10 |
24 |
