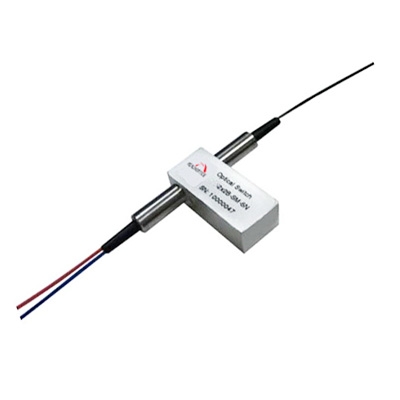

Reach Optics' MS Series switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.

The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.

• Low lnsertion Loss
• Low Cross Talk
• Low PDL
• High Reliability & Stability
• Unmatched Low Cost

• Channel Blocking
• Configurable Optical Add/Drop
• System Monitoring
• lnstrumentation

• Patent Pending

Parameter	Min	Typical	Max	Unit
Operation Wavelength Range	1310±40 or/and 1550±40			nm
Insertion Loss			0.7	dB
Polarization Dependent Loss(PDL)		0.05	0.1	dB
Cross Talk	55			dB
Return Loss	55			dB
Repeatability			±0.02	dB
Switching Time			10	ms
Operating Voltage	5			VDC
Durability	107			cycles
Optical Power Handing			800	mW
Operating Temperature	-10		75	℃
Storage Temperature	-40		85	℃
Switch Type	Latching or Non-Latching
Fiber Type	Corning SMF-28e fiber
Package Dimension	(L)46x(W)13.4x(H)11			mm
