1X2 Polarization Beam Combiner/Splitter (PBC/PBS)

1X2 Polarization Beam Combiner/Splitter (PBC/PBS)
Item : R-PBC/PBS
Reachoptics' Polarization Beam Combiner/Splitter is with very good quality and competitive price, wavelength could be 1310nm,1450nm,1480nm,1550nm,1064nm,1060nm;it's widely used in EDFA or Raman Amplifier systems, we accept for OEM Service.

1x2 Polarization Beam Combiner/Splitter (PBC/PBS)

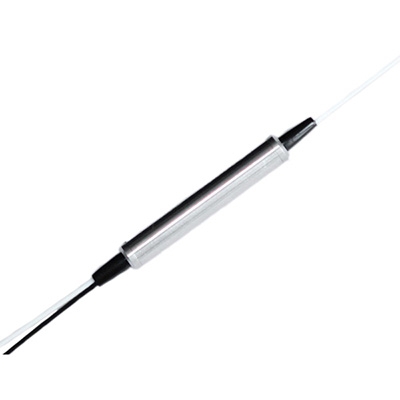

Reach Optics' Polarization Beam Combiner/Splitter is a compact lightwave component that combines two orthogonal polarization signals into the output fiber.The optical device is manufactured using HI1060, SMF-28 fiber or PM Panda fiber to suit different requirements.

It is widely used in EDFA or Raman Amplifier systems. They have low insertion loss, high extinction ratio, excellent uniformity and stability.

Features

Low Insertion Loss
High Extinction Ratio
High Stability and Reliability

Application:

EDFA & Raman Amplifier
Fiber Sensor
Coherent Telecommunication Systems
Polarization Mode Dispersion Compensator

Specification

Parameter		P	A	P	A
Wavelength(nm)		1310, 1450, 1480, 1550		1064，1040，1030
Operating Bandwidth (nm)		±40		±20
Typ. Insertion Loss (dB)		0.40	0.50	0.60	0.70
Insertion Loss(dB)		≤0.60	≤0.70	≤0.80	≤0.90
Extinction Ratio(dB)(Only for PBS)		≥22	≥20	≥22	≥20
Directivity(dB)		≥50
Return Loss(dB)		≥50
Power Handling (mW)		≤300
Fiber Type	Port 1 & 2	PM 1310&PM1550 Panda Fiber		PM980 Panda Fiber
	Port 3	SMF-28e or PM1310&PM1550 Panda Fiber		HI 1060 or PM 980 Panda Fiber
Ports Marking color(only for 250um bare fiber)		Port2 :Black ,Other ports :Clear
Ports Marking color(only for devices with 900um loose tube )		900um Red loose tube for all ports; marking:port2:black.
Operating Temperature (°C)		-5 ~ +70
Storage Temperature (°C)		-40 ~ +80
Dimensions (mm)		φ5.5 × L35(P1) (only for bare fiber or 900um loose tube)
		L90XW20XH9.5(P6) (only for 3mm or 2mm cable)

Above specifications are for device without connector.
*For devices with connector,IL will be 0.3dB higher,ER will be 2dB lower and RL will be 5dB lower.
*The PM fiber and the connector key are aligned to the slow axis.

Ordering Information

PBS PBC	Wavelength	Grade	Fiber Type for Port 3	Pigtail Type	Length	Connector
	1064=1064nm 1310=1310nm 1450=1450nm 1480=1480nm 1550=1550nm 1040=1040nm 1030=1030nm 1060=1060nm	P=P grade A=A grade	1=SMF-28e 2=HI 1060 3=PM Fiber, Slow Axis Align to Port 1 4=PM Fiber, Slow Axis Align 45° to Port 1 S= PM Fiber, Port 1 Fast Axis Align to Port 3 Fast Axis, Port 2 Fast Axis Align to Port 3 Slow Axis	1=250um bare fiber 2=900um loose tube 3=3mm Cable 4=2mm Cable 5= 400um bare fiber	H=0.5m 8=0.8m 1=1.0m 5=1.5m A=1.2m B=0.75m C=0.5m for input Port 3; 0.8m for output Port1,2	0=None 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 6=LC/UPC 7=LC/APC A=LC/UPC for port3, SC/UPC for port1&2 B=SC/UPC on input, SC/APC on outputs C=LC/UPC on input, SC/APC on outputs
