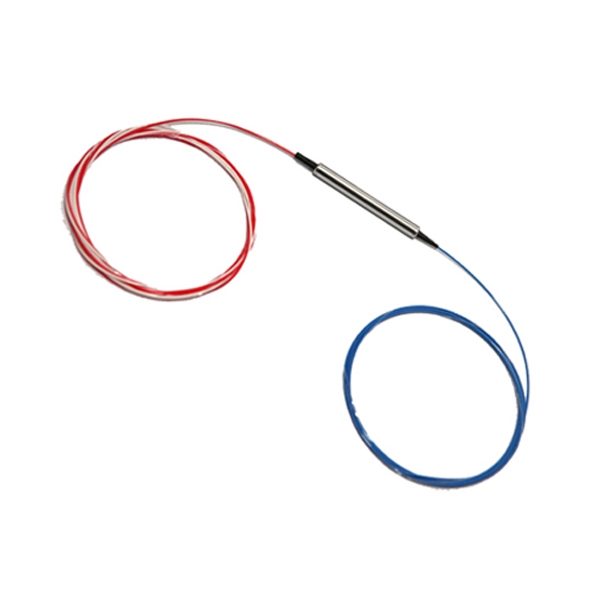

Reach Optics' Polarization Insensitive Optical Circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free.
It can be used for wavelength add/drop, dispersion compensation and EDFA application.
| Parameter | P Grade | |
| Configuration | Port 1 to Port 2 to Port 3 | |
| Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | |
|
Isolation (dB) |
Typical | 0.6 |
| Maximum | 0.8 | |
| Typical Isolation (dB) | ≥50 | |
| Minimum Isolation (dB) | ≥40 | |
| Cross Talk (dB) | ≥50 | |
| Polarization Dependent Loss (dB) | <0.15 | |
| Polarization Mode Dispersion | <0.1 | |
| Return Loss（dB）
|
≥50 | |
| Power Handling (mW) | 500 | |
| Opterating Temperature (℃) | -10~+75 | |
| Package dimension (mm) | Φ5.5xL50 or Φ5.5xL63 | |
| PIOC | Port | Wavlength | Grade | Fiber Type | Fiber Length | In/Out Connector |
| 3=3 Port | 13=1310nm 15=1550nm |
P=P Grade | 1=Bare fiber 2=900um loose tube |
1=1m 2=2m |
0=None |
