Reachoptics-1x2 Bare Fiber PLC Splitter, 250um, Singlemode, No connector

Home > Product > Optical Passive > PLC Splitter > 1x2 Bare Fiber PLC Splitter,250um,Singlemode, No Connector

1x2 Bare Fiber PLC Splitter,250um,Singlemode, No Connector

1x2 Bare Fiber PLC Splitter,250um,Singlemode, No Connector
Item : R-PLC-1020100
Reachoptics offering 1x2 Bare Fiber PLC Splitter, 250um, Singlemode, No connector, with low insertion loss, very good quality.

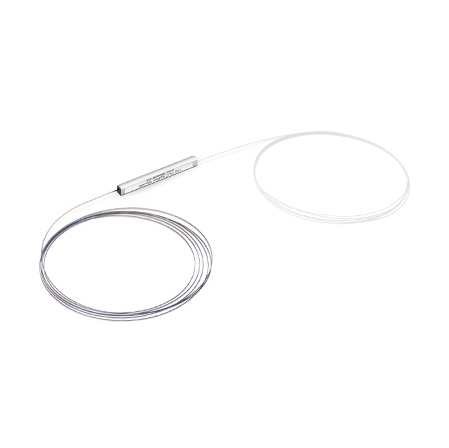

1X2 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Reachoptics' Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Reachoptics' Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Specification

Package Style	Steel Tube, Bare Fiber	Configuration Type	1x2
Fiber Type	Singlemode G657A1	Connector Type	None
Fiber Diameter	250μm	Fiber Length	1.5M
Insertion Loss	≤4.0dB	Return Loss	≥50dB
Loss Uniformity	≤0.6dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.2dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.3dB	Operating Bandwidth	1260~1650nm
Operating Temperature	-40~85°C	Storage Temperature	-40~85°C
