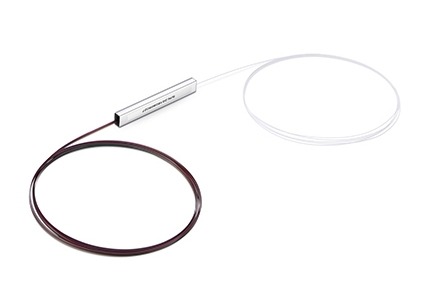

1x8 Bare Fiber PLC Splitter, 250um, Singlemode, No Connector

1x8 Bare Fiber PLC Splitter, 250um, Singlemode, No Connector
Item : R-PLC-1080000
Reachoptics offering 1x8 Bare Fiber PLC Splitter, 250um, Singlemode, No connector, with low insertion loss, very good quality.

1X8 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Reachoptics' Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Reachoptics' Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Specification

Package Style	Steel Tube, Bare Fiber	Configuration Type	1x8
Fiber Type	Singlemode G657A1	Connector Type	None
Fiber Diameter	250μm	Fiber Length	1.5M
Insertion Loss	≤10.6dB	Return Loss	≥50dB
Loss Uniformity	≤1.0dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.3dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.3dB	Operating Bandwidth	1260~1650nm
Operating Temperature	-40~85°C	Storage Temperature	-40~85°C
