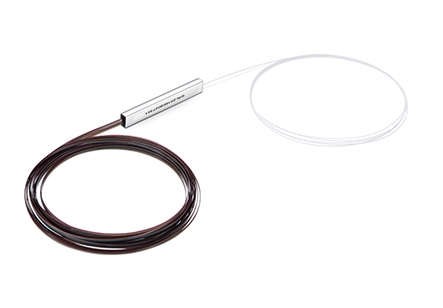

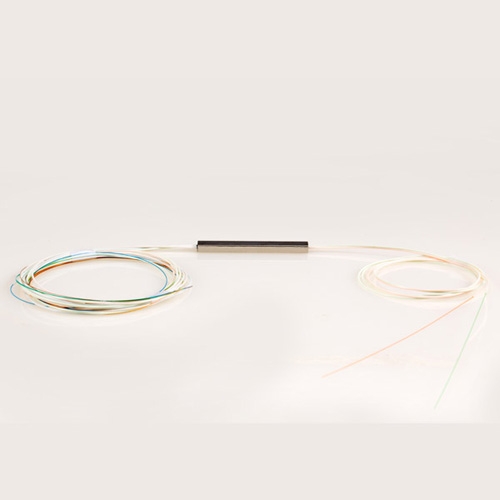

Reach Optics' Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Reach Optics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
| Parameter | Specification | |||||
| Operating Wavelength (nm) | 1260--1650 | |||||
| Type | 1x4 | 1x8 | 1x16 | 2x16 | 1x32 | 2x32 |
| Insertion Loss (dB) Max. | ≦7.3 | ≦11.0 | ≦14.0 | ≦14.3 | ≦18 | ≦18.8 |
| Uniformity (dB) Max. | ≦1.0 | ≦1.0 | ≦1.5 | ≦2.5 | ≦2.0 | ≦2.5 |
| PDL (dB) Max | ≦0.3 | ≦0.3 | ≦0.4 | ≦0.4 | ≦0.45 | ≦0.45 |
| Dimensions (H*W*L)(nm) | 4x4x38 | 4x4x40 | 4x5x50 | 4x7x60 | 4x7x60 | 4x7x70 |
| Directivity (dB) Min | 55 | |||||
| Return Loss (dB) Min | 50 | |||||
| Operating Temperature (℃) | -40～+85 | |||||
| Storage Temperature (℃) | -40～+85 | |||||
| Fiber Length | 1 m or custom length | |||||
| Fiber Type | Corning singlemode SMF-28 | |||||
| Connector Type | Custom specified | |||||
| Port | Wavelength (nm) | Input Pigtall Style | Input Connector | Output Pigtal Style | Fiber Length | Output Connector | Package tube type |
| 102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
01=1260～1650 02=1310 03=1550 04=1310&1550 05=1310&1490&1550 |
0=none 1=900um Loose tube 2=900um Jacket 3=2.0cable 4=3.0cable |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special |
0=none 1=900um Loose tube 2=900um Jacket 3=2.0cable 4=3.0cable |
0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special |
0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 |
B1=100x80x10 B2=120x80x18 B3=142x102x14.5 B4=141x115x18 RT=19”1U Rack SP=Special |
