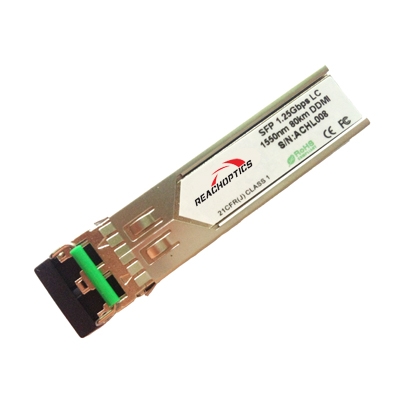

1.25G SFP 80km 1550nm Cisco Compatible Optical Module

1.25G SFP 80km 1550nm Cisco Compatible Optical Module
Item : RS-5512-80x(D)
Name Value

Form Factor SFP
Data Rate 1.25G
Distance 80km
Wavelength 1550nm
LD DFB
PD PIN
Connector LC
DDM Y/N
Reachoptics' 1.25G SFP ZR 1550nm 80km Single Mode Gigabit Ethernet with very good quality, price and fast delievery time, with three years warranty, 100% compatible for Cisco, HP, Dlink, Juniper, Ciena etc. OEM Service also offered.

Product Description

RS-5512-80x(D)

1.25Gbps SFP Optical Transceiver, 80km Reach

Features

Data-rate of 1.25Gbps operation
1550nm DFB laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C

Applications

Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Ordering information

Part Number	Product Description
RS-5512-80C	1550nm, 1.25Gbps, 80km, 0ºC ~ +70ºC
RS-5512-80CD	1550nm, 1.25Gbps, 80km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring
RS-5512-80N	1550nm, 1.25Gbps, 80km, -20ºC ~ +85ºC
RS-5512-80ND	1550nm, 1.25Gbps, 80km, -20ºC ~ +85ºC, With Digital Diagnostic Monitoring

Name	Value
Form Factor	SFP
Data Rate	1.25G
Distance	80km
Wavelength	1550nm
LD	DFB
PD	PIN
Connector	LC
DDM	Y/N
