Name | Value |
Form Factor | SFP BI-DI |
Data Rate | 155M |
Distance | 60km |
Wavelength | T1310/R1490 |
LD | DFB |
PD | PIN |
Connector | LC/SC |
DDM | Y/N |

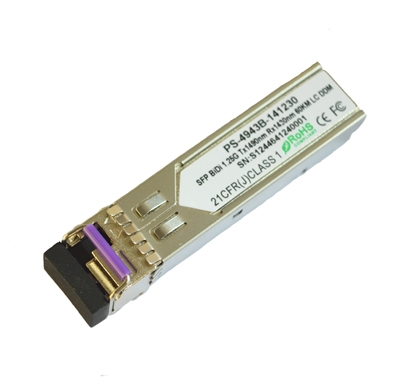

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Part Number | Product Description |
RSB-3401S-60C | 1310nm, 155Mbps, SC, 60km, 0°C~+70°C |
RSB-3401S-60CD | 1310nm, 155Mbps, SC, 60km, 0°C~+70°C, With Digital Diagnostic Monitoring |
RSB-3401L-60C | 1310nm, 155Mbps, LC, 60km, 0°C~+70°C |
RSB-3401L-60CD | 1310nm, 155Mbps, LC, 60km, 0°C~+70°C, With Digital Diagnostic Monitoring |
