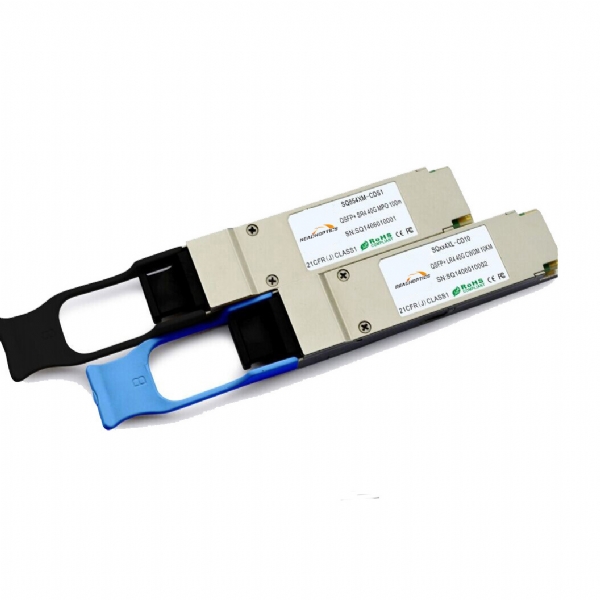

QSFP+ LR4 Optical Transceiver 40G 10km
Reach Optics' 40GBASE-LR4 QSFP Module supports link lengths of up to 10km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
Product Features
- 4 CWDM lanes MUX/DEMUX design
- 4 independent full-duplex channels Up to 11.2Gbps data rate per wavelength
- 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength,grid at 1270, 1290, 1310 and 1330 nm
- Single +3.3V power supply
- High Sensitivity PIN-TIA with optical DEMUX
- Up to 10km transmission
- Hot pluggable electrical interface
- Operating case temperature: 0~70C
- Maximum 3.5W operation power
- RoHS compliant
- Compliant with IEEE802.3ba
- Compliant with QSFP+ MSA: SFF-8436
Applications
- 40G Ethernet
- Infiniband 4X SDR DDR QDR
- 40G Telecom connections
Description
- 40Gbps hot pluggable transceiver in QSFP+ form factor
- Optical connectivity based on two SMF LC connectors
- Four 10GBps CWDM channels in the 1300nm band
Mechanical Dimensions
Regulatory Compliance
- ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.7
- ESD to the LC Receptacle: compatible with IEC 61000-4-2 GR-1089-CORE
- Immunity compatible with IEC 61000-4-3
- EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
- Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2
- RoHS compliant with 2002/95/EC 4.1&4.2 2005/747/EC
Ordering Information
| Part Number |
Description |
| RSQxx4XL-CD10 |
40Gb/s QSFP+ LR4, 10 km on a standard single mode fiber |
