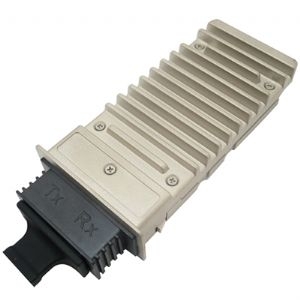

10G X2 10km 1310nm

10G X2 10km 1310nm
Item : RX2-3196-10CD
Name Value

Form Factor X2
Data Rate 10G
Distance 10km
Wavelength 1310nm
LD DFB
PD PIN
Connector SC
DDM Y
Reachoptics' 10G X2 10km 1310nm Optical Transceiver Module with pretty good quality and competitive price, for three years warranty, compatible for Cisco, HP, Dlink, Juniper etc. OEM Service acceptable.

Product Description

RX2-3196-10CD

10GBASE -LR , 1310nm,10km Reach

Features

Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
Transmission Distance up to 10Km(SMF)
SC Receptacle 1310 DFB Laser
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply :+3.3V, APS(+1.2V)
Diagnostic Optics Monitoring
Temperature Range: 0~ 70 °C
ROHS Compatible

Applications

10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Other 10Gbps Ethernet Transmission System

Product Description

The RX2-3196-10D is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly modulated 1310nm DFB Laser. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.

Mechanical Dimensions

Ordering information

Part Number	Product Description
RX2-3196-10CD	1310nm, 10.3125Gbps, 10Km, 0ºC ~ +70ºC

Name	Value
Form Factor	X2
Data Rate	10G
Distance	10km
Wavelength	1310nm
LD	DFB
PD	PIN
Connector	SC
DDM	Y
