•  Compatible with X2 MSA Rev2.0b
•  Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
•  Transmission Distance up to 300m (MMF)
•  Vertical Cavity Surface Emitting Laser at 850nm
•  SC Duplex Optical Connector
•  Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
•  Management and control via MDIO 2-wire interface
•  Power Supply :+3.3V, APS(+1.2V)
•  Diagnostic Optics Monitoring
•  Temperature Range: 0~ 70 °C
•  RoHS Compatible

•  10GE Ethernet switches and routers
•  10GE Core-routers
•  10GE Storage
•  Other 10Gbps Ethernet Transmission System

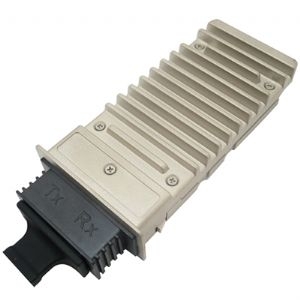

The RX2-8596-S3D is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 300m Transmission with a vertical cavity surface emitting laser (VCSEL). Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.
