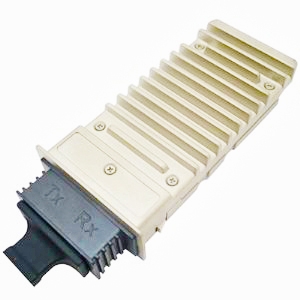

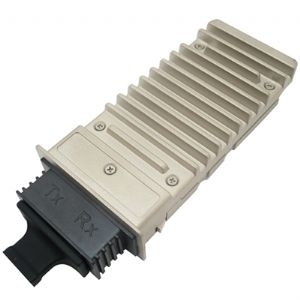

10G CWDM X2 40km 1470nm~1610nm

10G CWDM X2 40km 1470nm~1610nm
Item : RX2C-xx96-40CD
Name Value

Form Factor X2 CWDM
Data Rate 10G
Distance 40km
Wavelength 1470nm~1610nm
LD DFB
PD PIN
Connector SC
DDM Y
Reachoptics' 10G CWDM X2 40km 1470~1610nm optical transceiver with very good quality and competitive price, compatible for HP, H3C,Cisco, Dlink etc. For three years warranty, short lead time, OEM Service is acceptable.

Product Description

RX2C-xx96-40CD

10Gb/s CWDM X2 ER 40km Transponder

Description

Reachoptics' CWDM X2 transceiver series is designed for CWDM optical data communications such as 10G Ethernet 10GBASE-ER/EW/ZR and 10G Fibre Channel applications. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. Maximum optical budget is 23dB .The transceiver consists of two sections: The transmitter section consists of a directly modulated uncooled CWDM DFB/EML laser, driver and signal conditioner. The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and signal conditioner or APD.

Features

X2 MSA Compliant
70-PIN connector
SC duplex receptacle package
Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
Cooled EA-DFB/PIN-PD
Power supply: +5.0 V, +3.3 V, APS:+1.2 V
Power Dissipation 4W Maximum
0ºC to 70ºC Operating Case Temperature
Digital Diagnostic Monitoring
Management and control with MDIO 2-wire bus
XAUI electrical interface 4 x 3.125 Gb/s Ethernet
≤40km ER（Extended Range）10GBE
RoHS compliant and lead free

Applications

10 Gb/s Ethernet transmission systems

Mechanical Dimensions

Ordering information

Part Number	Product Description
RX2C-4796-40CD	X2, 1470nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-4996-40CD	X2, 1490nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-5196-40CD	X2, 1510nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-5396-40CD	X2, 1530nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-5596-40CD	X2, 1550nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-5796-40CD	X2, 1570nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-5996-40CD	X2, 1590nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
RX2C-6196-40CD	X2, 1610nm 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD
