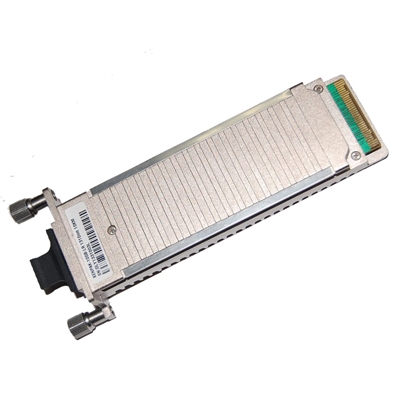

RXK-5596-40CD
10Gb/s 1550nm XENPAK ER Transponder
Features
- XENPAK MSA Compliant
- 70-PIN connector
- SC duplex receptacle package
- XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate
- Cooled EA-DFB/PIN-PD
- Power supply: +5.0 V, +3.3 V, APS:+1.2 V
- Power Dissipation 4W Maximum
- 0ºC to 70ºC Operating Case Temperature
- Digital Diagnostic Monitoring
- Management and control with MDIO 2-wire bus
- XAUI electrical interface 4 x 3.125 Gb/s Ethernet
- ≤40km ER（Extended Range）10GBE
- RoHS compliant and lead free
Applications
- 10 Gb/s Ethernet transmission systems

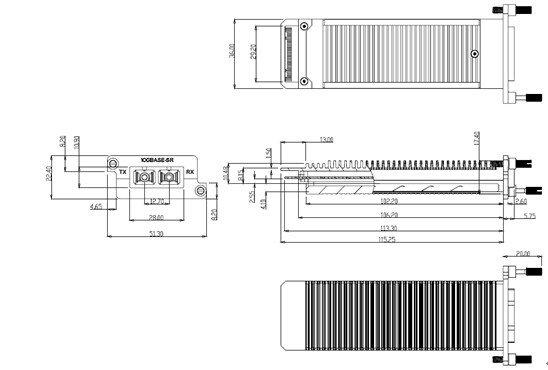

Mechanical Dimensions
Ordering information
| Part Number |
Product Description |
| RXK-5596-40CD |
XENPAK, 40km(ER), 0ºC ~ 70ºC, Cooled EA-DFB/PIN-PD |
